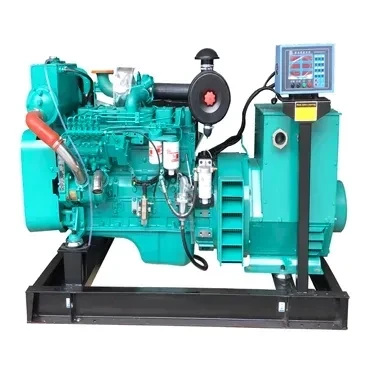

Cummins 6BTA5.9-GM83 engine
6BT5.9 Marine Auxiliary Engines for Commercial Applications Features and Benefits Engine Design – Robust engine block designed for continuous duty operation and long life. Single Lubrication System – Standard capacity (14.2 L) oil pan available with rear, front or center sump for installation flexibility.
Spin on Cummins lube filters cylinder head with four valves per cylinder enhances Electronics – 24v standard electrical system with Fuel System – Rotary fuel pump with optional Certifications – Marine Classification Society electronic governor for precise fueling and engine.
General data of Cummins 6BT5.9-GM83 Marine Auxiliary Engine |
|
Engine Model |
Cummins 6BT5.9-GM83 |
Type |
6 cylinder in line |
Displacement |
5.9 L |
Bore&Stroke |
102×120 mm |
Dry Weight |
426 KG |
Dimension(L*W*H) |
1181.58*684.2*1127.58 |
Aspiration |
Turbocharged |
Fuel System |
A Pump/GAC Governor Regulation ≤3% |
Coolant capacity-engine only |
9.9 litre |
Idle speed |
950-1050 RPM |
Compression ratio |
17.3:1 |
Piston Speed |
6 m/sec |
Firing Order |
1-5-3-6-2-4 |
Rated Output |
83/KW/112HP |
Standby Output |
92KW/125HP |
Rated Speed(RPM) |
1500 |
Frequency(HZ) |
50 |
Fuel Consumption/rated output |
214 g/KW.h |
Fuel Consumption/standby output |
216 g/KW.h |
