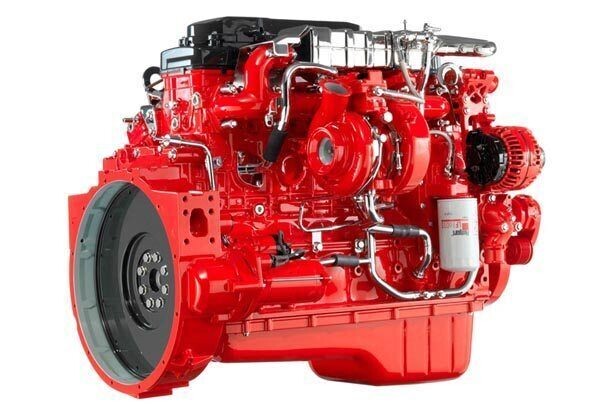

Cummins Engine Model 4BT3.9-G1
Add to Quote0.00
In stock
Product Details
4BT3.9-C80 SO11564 Parts Catalogue
| Parts No | Parts Name |
|---|---|
| 3927772 | BEARING,CRANKSHAFT THRUST |
| 3937214 | NOZZLE,PISTON COOLING |
| A3901258 | GEAR,CRANKSHAFT |
| C3901306 | BUSHING |
| C3903920 | BLOCK，CYLINDER |
| C3007635 | PLUG,EXPANSION |
| C3900965 | PLUG,EXPANSION |
| C3904217 | Screw,Hexagon Head Cap |
| C3913917 | CAP,MAIN BEARING |
| C3900068 | DOWEL,RING |
| C3900257 | DOWEL, PIN |
| C3900687 | PLUG,EXPANSION |
| C3929016 | BEARING,MAIN |
| C3929021 | BEARING,CRANKSHAFT THRUS |
| C3929036 | Crankshaft,Engine |
| C3919624 | PULLEY,ACCESSORY DRIVE |
| A3960485 | GEAR,FUEL PUMP |
| C3900630 | Screw,Hex flange headcap |
| C3967107 | WASHER,PLAIN |
| C3977315 | STUD |
| C3977319 | CONNECTOR,MALE |
| C3977321 | HOSE,FLEXIBLE |
| C4932602 | BRACE,FUEL PUMP |
| C4988581 | NUT,HEXAGON FLANGE |
| C4991523 | SCREW,HEXAGON HEAD CAP |
| C4991549 | SUPPORT,FUEL PUMP |
| C3903380 | SEAL,BANJO CONNECTOR |
| C3905307 | SCREW,BANJO CONNECTOR |
| C4932532 | TUBE,FUEL DRAIN |
| C4932608 | CONNECTOR,T |
| C4934018 | MANIFOLD,FUEL |
| C4988331 | TUBE,FUEL DRAIN |
| Z3900023 | TUBE,INJECTOR FUEL SUPPL |
| Z3900024 | TUBE,INJECTOR FUEL SUPPL |
| A3903663ZZ | COVER,GEAR |
| C4991305 | SEAL,OIL |
| C4991307 | COVER,GEAR |
| C3903475 | SEAL，RECTANGLE |
| C3913995 | HOUSING,TIMING PIN |
| C3903924 | PIN,TIMING |
| C3904849 | RING,RETAINING |
| C3913994 | SEAL，O RING |
| C3915772 | SEAL，RECTANGLE |
| C3938156 | GASKET,GEAR HOUSING |
| C3960319 | GASKET,GEAR COVER |
| C3960338 | HOUSING,GEAR |
| C3284377 | ROD,PUSH |
| C3920781 | Screw,hex flange head ca |
| C3934920 | Support,Rocker lever |
| C3931623 | TAPPET,VALVE |
| C3283767 | GASKET,PUSH ROD COVER |
| C3900630 | Screw,Hex flange headcap |
| C3918612 | HOSE，PLAIN |
| C3936188 | COVER,PUSH ROD |
| C4935793 | Water Pump |
| Parts No | Parts Name |
|---|---|
| C4928971 | CLAMP,T BOLT |
| C3958258 | DAMPER,VIBRATION |
| C4988455 | SPACER,CRANKSHAFT |
| C4942479 | PLATE,COVER |
| C4930315 | THERMOSTAT |
| C4938600 | ALTERNATOR |
| C3910923 | SUPPORT,ALTERNATOR |
| C3285958 | BRACKET,BELT TENSIONER |
| C3911568 | BELT，V RIBBED |
| C3937553 | TENSIONER,BELT |
| C4988361 | SUPPORT,FRONT ENGINE |
| C4988362 | SUPPORT,FRONT ENGINE |
| C3967250 | SENSOR,TEMPERATURE |
| C3967251 | SENSOR,OIL PRESSURE |
| C3967252 | SENSOR,SPEED |
| C3914458 | FULLEY,FAN |
| C4932907 | SUPPORT,FAN |
| C4983776 | TUBE,AIR FUEL CONTROL |
| C3925955 | ADAPTER,FILTER HEAD |
| C3930942 | FILTER,FUEL |
| C3931063 | FILTER,FUEL |
| C4934663 | HEAD,FUEL FILTER |
| C4988332 | TUBE,FUEL SUPPLY |
| C3938159 | GASKET,REAR COVER |
| C4933323ZZ | COVER,REAR |
| 3970548 | SEAL,OIL |
| C4947579 | HOUSING,FLYWHEEL |
| C4931801 | FAN,ENGINE |
| C3973845 | PUMP,FUEL INJECTION |
| C4937767 | PUMP,FUEL TRANSFER |
| C4988330 | TUBE,FUEL SUPPLY |
| C4941542 | HANDLE,SHUTOFF |
| C4942879 | SOLENOID,FUEL PUMP |
| C4939064 | FLYWHEEL |
| C4988335 | PIPE,AIR TRANSFER |
| C3977197 | BRACKET,LIFTING |
| C3908616 | Cartridge,Lub oil filter |
| C3957543 | CORE,COOLER |
| C4932124 | GASKET,OIL COOLER CORE |
| C4934218 | HEAD,LUB OIL COOLER |
| C3933364 | DIPSTICK |
| C3968986 | TUBE,OIL GAUGE |
| C4937408 | PUMP,LUBRICATING OIL |
| C3901049 | PAN,OIL |
| C3905206 | Connection,Oil suction |
| C3938162 | Gasket,Oil pan |
| A3908179ZZ | PISTON,ENGINE |
| C3904531 | RING,COMPRESSION PISTON |
| C3918315 | Ring,Compression Piston |
| C3920691 | RING,RETAINING |
| C3932520 | Ring,Oil Piston |
| C3942581 | Rod,Engine Connecting |
| C3900919 | Screw,Connecting Rod |
| C4891178 | Bushing |
| C3973197 | CONNECTION,WATER INLET |
| Parts No | Parts Name |
|---|---|
| C3971970 | BEARING,CONNECTING ROD |
| C4991283 | PIN,PISTON |
| A3914638 | CAMSHAFT |
| A3907431 | GEAR,CAMSHAFT |
| C3927155 | SUPPORT,CAMSHAFT THRUST |
| C4928969 | KEY,PLAIN WOODRUFF |
| A3919350 | INJECTOR |
| C3909356 | Seal,Rectangular Ring |
| 3900250 | COLLET,VALVE |
| C3283333 | GASKET,CYLINDER HEAD |
| C3916691 | SPRING,VALVE |
| C3920779 | Screw,Hex flange head ca |
| C3926700 | SPRING,VALVE |
| C3957912 | SEAL,VALVE STEM |
| C3957913 | RETAINER,VALVE SPRING |
| C3966450 | HEAD,CYLINDER |
| C3812092 | Plug,Pansion |
| C3966449 | HEAD,CYLINDER |
| C4994143 | VALVE,EXHAUST |
| C4995554 | VALVE,INTAKE |
| C3919369 | GASKET,TURBOCHARGER |
| C3960407 | TURBOCHARGER |
| C4988354 | RELAY |
| C4988412 | BRACKET,RELAY |
| C4931779 | FLANGE,FAN CONNECTION |
| C3930906 | Gasket,Valve cover |
| C3937706 | GASKET,OIL DRAIN |
| C3939258 | GASKET，COVER PLATE |
| C3942915 | Gasket,filter head |
| C4932124 | GASKET,OIL COOLER CORE |
| C3971093 | ELBOW,MALE ADAPTER |
| C4928803 | CLAMP,SPRING HOSE |
| C4988423 | MUFFLER |
| C4988425 | CONNECTION,TUR OIL DRAIN |
| C4988449 | SWITCH,SELECTOR |
| C4988450 | REGULATOR,VOLTAGE |
| C4935789 | MOTOR,STARTING |
| C3901635 | MANIFOLD,EXHAUST |
| C3929881 | GASKET,EXHAUST MANIFOLD |
| C3938153 | GASKET,INT MANIFOLD COVE |
| C3938158 | GASKET, CONNECTION |
| C4947828 | COVER,INTAKE MANIFOLD |
| C4988334 | CONNECTION,AIR INTAKE |
| RQ61901 | PLUG,PIPE |
| C3281246 | Bracket,Lifting |
| C3285102 | HOUSING,THERMOSTAT |
| C3923331 | Gasket,Thm housing cover |
| C4942951 | BRACKET,THROTTLE CONTROL |
| C3937706 | GASKET,OIL DRAIN |
| C3974113 | HOSE,FLEXIBLE |
| C3977615 | CONNECTION,TUR OIL DRAIN |
| C3901895 | CAP,FILLER |
| C3928404 | Cover,Valve |
| C3930906 | Gasket,Valve cover |
| C3935449 | ISOLATOR,NOISE |
Cummins Engine Model 4BT3.9-G1
