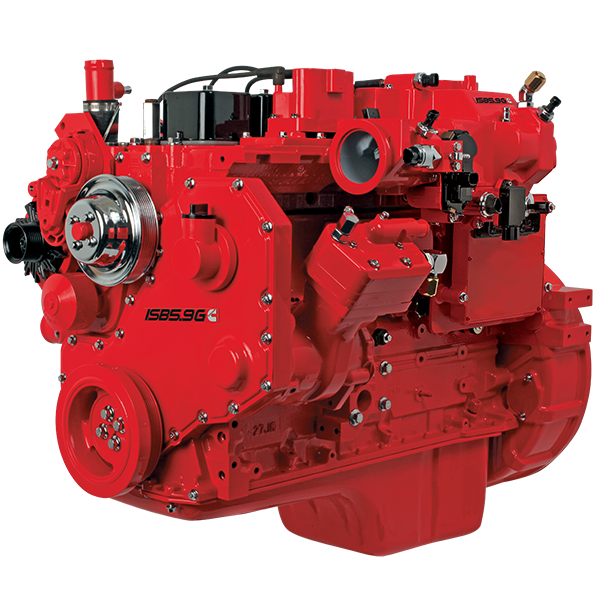

Cummins Engine model ISB5.9 G

Name: Cummins Engine model ISB5.9 G
SKU: 00404
Availability: InStock

Store / Engine Spare parts / Cummins

Add to Quote0.00

In stock

Product Details

OPTION NAME	PART NO	PART NUMBER	PART NAME	REQ
	1	Q150B1235	SCREW,HEXAGON HEAD CAP	6

	2	Q40112	WASHER,PLAIN	6

SUPPORT,FRONT ENGINE	3	Q40312	WASHER,SPRING	6

	4	Z3900078	SUPPORT,FRONT ENGINE	1

	5	Z3900079	SUPPORT,FRONT ENGINE	1

	1	11N-08480	BRACE,FIXATION	1

	2	Q150B1020	SCREW,HEXAGON HEAD CAP	2
BRACE,FIXATION
	3	Q40110	WASHER,PLAIN	2

	4	Q40310	WASHER,SPRING	2

	1	12N-03051	CLAMP,SPRING HOSE	2

	2	12N-03061	GASKET	1

	3	C3971092	BRACE,EXHAUST ELBOW	1

	4	C3971093	ELBOW,MALE ADAPTER	1

	5	C4928805	GASKET,EXHOUT CONNECTION	2

	6	Q150B0835	SCREW,HEXAGON HEAD CAP	2
CONNECTION,EXHAUST
	7	Q150B1016	SCREW,HEXAGON HEAD CAP	4

	8	Q340B08	NUT,HEXAGON	2

	9	Q40108	WASHER,PLAIN	2

	10	Q40110	WASHER,PLAIN	4

	11	Q40308	WASHER,SPRING	2

	12	Q40310	WASHER,SPRING	4

CONNECTOR,VENT	1	13N-11020	CONNECTOR,VENT	1

	1	Q150B1035	SCREW,HEXAGON HEAD CAP	4

	2	Q1840835-0H1	SCREW，HEX FLANGE HEAD	4

	3	Q340B10	NUT,HEXAGON	4
FLANGE,FAN CONNECTION
	4	Q40110	WASHER,PLAIN	4

	5	Z3900020	FLANGE,FAN CONNECTION	1

	6	Z3900048	FAN,ENGINE	1

	1	Q150B1020	SCREW,HEXAGON HEAD CAP	2

	2	Q1841225	SCREW,HEX FLANGE HEAD CA	2

	3	Q32010	NUT,HEXAGON FRANGE	2
PIPE AND BOARD
	4	Q40310	WASHER,SPRING	2

	5	Z3900118	BRACE	1

	6	Z3900156	TUBE,AIR INTAKE	1

	1	37N-35085-B	RELAY，STARTING	2

	2	Q150B0820	SCREW,HEXAGON HEAD CAP	4

	3	Q340B08	NUT,HEXAGON	4
RELAY AND BRACKET
	4	Q40108	WASHER,PLAIN	4

	5	Q40308	WASHER,SPRING	4

	6	Z3900365	BRACKET,RELAY	1

	1	3845N05-010	SENSOR,TEMPERATURE	1

SENSOR	2	C3967251	SENSOR,OIL PRESSURE	1

	3	Z3900354	SENSOR,SPEED	2

	1	3927772	BEARING,CRANKSHAFT THRUS	1

	2	A3900068	DOWEL,PIN	2

	3	A3901090	BEARING,MAIN	6

	4	A3901150	BEARING,MAIN	7

	5	A3901258	GEAR,CRANKSHAFT	1

	6	A3902343	DOWEL,PIN	2

	7	A3903797ZZ	BLOCK,CYLINDER	1

	8	A3900956	PLUG,EXPANSION	1

	9	A3900956	PLUG,EXPANSION	1

	10	A3900956	PLUG,EXPANSION	1

	11	A3901306	BUSHING	1

	12	A3905806	BLOCK,CYLINDER	1

	13	A3007635	PLUG,EXPANSION	4
BLOCK,ENGINE
	14	A3901204	BLOCK,CYLINDER	1

	15	A3912553	CASTING,CYLINDER BLOCK	1

	16	A3913917	CAP,MAIN BEARING	7

	17	C3900965	PLUG,EXPANSION	5

	18	C3904217	Screw,Hexagon Head Cap	14

	19	A3919002	NOZZLE,PISTON COOLING	6

	20	C3008468	PLUG, PIPE	1

	21	C3900257	DOWEL, PIN	2

	22	C3900687	PLUG,EXPANSION	1

	23	C3904483	DOWEL, PIN	1

	24	C3906619	PLUG, PIPE	1

	25	C3929037	Crankshaft, Engine	1

	26	C3915258	Crankshaft, Engine	1

	1	C3970588	Cleaner,Air	1

	2	C3976063	Bracket,Air cleaner	1
Cleaner,Air
	3	C3978436	Clamp,Air cleaner	2

	4	Z3900047	HOSE,PLAIN	1

	1	A3960049	GASKET,AIR COMPRESSOR	1

	2	C3008468	PLUG, PIPE	1

	3	C3900965	PLUG,EXPANSION	1

COMPRESSOR,AIR	4	C3906619	PLUG, PIPE	2

	5	C3914868	Plate,Cover	1

	6	Q1840820	SCREW,HEX FLANGE HEAD CA	2

	7	Q1841225	SCREW,HEX FLANGE HEAD CA	2

ALTERNATOR	1	37N-01010	ALTERNATOR	1

	1	A3903105	SCREW,HEX FRANGE HEAD CA	1

	2	A3910923	BRACE,ALTERNATOR	1

	3	A3910924	SUPPORT,ALTERNATOR	1

LOCATION,ALTERNATOR	4	Q1840825	SCREW,HEX FLANGE HEAD CA	3

	5	Q1840825	SCREW,HEX FLANGE HEAD CA	1

	6	Q1841225	SCREW,HEX FLANGE HEAD CA	1

	7	Q32012	NUT,HEXAGON FLANGE	1

	1	A3900678	SCREW,HEX FLANGE HEAD CA	4

DRIVE,FAN	2	C3914458	FULLEY,FAN	1

	3	Z3900054	SUPPORT,FAN	1

PLUMBING,AIR FUEL CON	1	C3906619	PLUG, PIPE	1

	1	11N12-04125	CONNECTOR,BANJO	1

	2	A3900267	SEAL,GROMMET	2

	3	A3905307	SCREW,BANJO CONNECTOR	6

	4	A3913884	TUBE,INJECTOR FUEL SUPPL	1

	5	A3913888	TUBE,INJECTOR FUEL SUPPL	1

	6	A3960453	MANIFOLD,FUEL	1

PLUMBING,FUEL	7	A3960617	SUPPORT,TRANSFER TU	1

	8	C3903380	SEAL,BANJO CONNECTOR	6

	9	C3924726	VALVE，CHECK	1

	10	Q150B0612	SCREW,HEXAGON HEAD CAP	1

	11	Q1840820	SCREW,HEX FLANGE HEAD CA	2

	12	Q1840828-J8	SCREW,HEX FRANGE HEAD CA	2

	13	Q68105	CLIP	1

	1	C3900269	Washer,Plain	4

	2	C3900269	Washer,Plain	4

FLYWHEEL	3	C3901395	Screw,hexagon head cap	4

	4	C3901395	Screw,hexagon head cap	4

	5	Z3900053	FLYWHEEL	1

	1	C3900955	PLUG,EXPANSION	2

GAUGE,OIL LEVEL	2	Z3900051	TUBE,OIL GAUGE	1

	3	Z3900052	DIPSTICK	1

	1	A3900629	SCREW,HEX FRANGE HEAD CA	2

	2	A3911536	GASKET ,OIL PIN	1

	3	A3915703	PAN,OIL	1

	4	A3960332	GASKET,FLANGE	1

	5	C3902425	SEALING WASHER	1

PAN,OIL	6	C3920400	SCREW,HEX HEAD CAP	36

	7	C3920773	WASHER,SEALING	1

	8	C3921992	Connection,oil suction	1

	9	C3924147	PLUG，THREADED	1

	10	C3924148	PLUG，THREADED	1

	11	Q1840820	SCREW,HEX FLANGE HEAD CA	2

	1	C3415600	DATAPLATE	1
APPROVAL,AGENCY
	2	RQ541255	SCREW,DRIVE	2

	1	A3903744	TUBE,TUR OIL DRAIN	1

	2	A3903745	HOSE,PLAIN	1

	3	A3918579	CONNECTION,TUR OIL DRAIN	1

	4	C3937706	Gasket,Oil drain	1

	5	C3974113	Hose,Flexible	1
PLUMBING,TURBOCHARGER
	6	C3975113ZZ	CONNECTOR,MALE	2

	7	C3037236	SEAL，O RING	1

	8	C3975114	CONNECTOR,MALE	1

	9	Q1840825	SCREW,HEX FLANGE HEAD CA	2

	10	Q67635B	CLAMP,SPRING HOSE	2

	1	A3904679	ROD,PUSH	12

	2	A3910815	SUPPORT,ROCKER LEVER	6
LEVER,ROCKER
	3	C3920781	Screw,hex flange head ca	6

	4	Q150B0875	SCREW,HEXAGON HEAD CAP	6

FOLLOWER,CAM	1	C3931623	TAPPET,VALVE	12

	1	A3900629	SCREW,HEX FRANGE HEAD CA	5

	2	A3900629	SCREW,HEX FRANGE HEAD CA	11

	3	A3903463	COVER,PLATE	1

	4	A3903663ZZ	COVER,GEAR	1

	5	A3900709	SEAL,OIL	1

	6	A3903794	COVER,GEAR	1

	7	A3913995ZZ	HOUSING,TIMING PIN	1

	8	C3903924	PIN,TIMING	1

	9	C3904849	RING,RETAINING	1

COVER,FRONT GEAR	10	C3913994	SEAL，O RING	1

	11	C3919683	HOUSING,TIMING PIN	1

	12	A3960061	GASKET,GEAR HOUSING	1

	13	A3960319	GASKET,GEAR COVER	1

	14	A3960338	HOUSING,GEAR	1

	15	C3903475	SEAL，RECTANGLE	1

	16	C3907998	SCREW, ROUND HEAD CAP	2

	17	C3915772	SEAL，RECTANGLE	1

	18	Q1840850	SCREW,HEX FLANGE HEAD	2

	19	Q1840850	SCREW,HEX FLANGE HEAD	9

	1	A3900267	SEAL,GROMMET	4

	2	A3907586	BAFFLE,BREATHER	1

	3	A3907617	GASKET,PUSH ROD COVER	1

COVER, CAM FOLLOWER	4	A3911822	COVER,PUSH ROD	1

	5	C3918614	HOSE,PLAIN	1

	6	Q1840820	SCREW,HEX FLANGE HEAD CA	4

	7	Q67627B	CLAMP,SPRING HOSE	1

	1	A3913830	FLANGE,CRANKSHAFT	1

DAMPER,VIBRATION	2	A3914454	DAMPER,VIBRATION	1

	3	C3903857	SCREW,HEX FLANGE HEAD	4

THERMOSTAT	1	1306R2-010-B2	THERMOSTAT	1

	1	C3901249	SCREW,HEX FLANGE HEAD	1
PANEL,ENGINE INSTRUMENT
	2	C4932506	WIRE,GROUND	1

	1	A3903095	SCREW,FLAT HEAD CAP	2

	2	A3911568	BELT,V RIBBED	1

	3	A3914086	TENSIONER ,BELT	1
DRIVE,ALTERNATOR
	4	A3919985	BRACKET,BELT TENSIONER	1

	5	Q150B1075	SCREW,HEXAGON HEAD CAP	1

	6	Q40110	WASHER,PLAIN	1

	1	1117N-010	FILTER,FUEL	1

	2	1125N-010	FILTER,FUEL	1

	3	A3355027	HEAD,FUEL FILTER	1

	4	A3904362	HEAD,FUEL FILTER	1

	5	A3911446	SCREW,BANJO CONNECTOR	1

	6	C3906694	SEAL，RECTANGLE	1
FILTER,FUEL
	7	C3906695	SEAL，RECTANGLE	1

	8	C3925955	ADAPTER,FILTER HEAD	1

	9	C3939570	Screw,Captive washer cap	1

	10	Q1840835-J8	SCREW,HEX FRANGE HEAD CA	2

	11	Q351B16	NUT,HEXAGON	1

	12	Z3900518	SEAL,GROMMET	2

	1	A3960421	TUBE,FUEL SUPPLY	1
FILTER,FUEL
	2	A3960692	CLAMP	1

	1	A3900627	SCREW,HEX FRANGE HEAD CA	6

	2	A3909670	CLIP	1

	3	A3910248	PLUG,O RING	1

	4	A3910260	SEAL,O RING	1

	5	A3910540	SCREW,HEX FRANGE HEAD CA	8

	6	A3910619ZZ	COVER,REAR	1

	7	A3925529	SEAL,OIL	1
HOUSING,FLYWHEEL
	8	C3936904	Cover,Rear	1

	9	A3912473	SEAL,RECTANGULAR RING	1

	10	A3960313	GASKET,REAR COVER	1

	11	C3008469	PLUG, PIPE	1

	12	C3908095	Plate,Cover	1

	13	Q150B0816	SCREW,HEXAGON HEAD CAP	2

	14	Z3900222	HOUSING,FLYWHEEL	1

	1	A3907978	STUD	4

	2	A3913864	BRACE,FUEL PUMP	1

	3	A3913866	SUPPORT,FUEL PUMP	1

	4	A3960485	GEAR,FUEL PUMP	1

	5	C3977321	Tube,Lub oil supply	1

COUPLING,FUEL PUMP	6	Q150B1020	SCREW,HEXAGON HEAD CAP	2

	7	Q1840820	SCREW,HEX FLANGE HEAD CA	1

	8	Q32010	NUT,HEXAGON FRANGE	4

	9	Q40110	WASHER,PLAIN	2

	10	Q40310	WASHER,SPRING	2

	11	RQ65106-J8	CONNECTOR,MALE	1

Pump,Base fuel	1	C3976801	Pump,Fuel injection	1

	1	1106N1-010	PUMP,FUEL TRANSFER	1

	2	A3914284	SPACER,MOUNTING	1

	3	A3916361	SCREW,BANJO CONNECTOR	1

	4	A3960316	GASKET,COVER	2
PUMP,LIFT
	5	A3960423	TUBE,FUEL SUPPLY	1

	6	Q1840825	SCREW,HEX FLANGE HEAD CA	2

	7	RQ65410-J8	ELBOW,MALE ADAPTER	1

	8	Z3900518	SEAL,GROMMET	2

	1	C3974947	SOLENOID,FUEL PUMP	1
VALVE,FUEL SHUTOFF
	2	Z3900288	HANDLE,SHUTOFF	1

	1	A3908118	BRACKET,LIFTING	1
BRACKET,LIFTING
	2	Q1841225	SCREW,HEX FLANGE HEAD CA	2

	1	C3415381	LABEL,ENGINE	1
LABEL, ENGINE
	2	C3415461	DECAL	1

LABEL,ENGINE	1	C3415403	DECAL	1

	1	C3974406	Decal	1
Labeling Engine
	2	C3975443	Decal	1

	1	1012N-010	CARTRIDGE,LUB	1

	2	A3913967	HEAD,LUB OIL FILTER	1

	3	A3921558	CORE,COOLER	1

Cooler,Engine oil	4	A3960317	GASKET,OIL COOLER CORE	1

	5	A3960320	WASHER,SEALING	1

	6	C3906619	PLUG, PIPE	1

	7	Q1840835-0H1	SCREW，HEX FLANGE HEAD	14

	1	1011N-010-A2	PUMP,LUBRICATION OIL	1
PUMP,LUBRICATING OIL
	2	Q150B0830	SCREW,HEXAGON HEAD CAP	4

	1	A3910495	SCREW,HEX FRANGE HEAD CA	2

	2	Z3900055	TUBE,OIL FILLER	1
COVER,CYLINDER BLOCK
	3	Z3900056	CAP,FILLER	1

	4	Z3900058	SEAL,O RING	1

	1	A3908103ZZ	PISTON,ENGINE	1

	2	A3901170	BEARING,CONNECTING ROD	12

	3	A3901706	RING,RETAINING	12

	4	A3901793	PIN,PISTON	6

	5	A3902286	RING,COMPRESSION PISTON	6

	6	A3902401	RING,COMPRESSION PISTON	6

	7	A3903384	RING,OIL PISTON	6

	8	A3907163	PISTON, ENGINE	6

	9	C3942581	Rod,Engine Connecting	6

	10	A3941476	BUSHING	1

	11	C3900919	Screw,Connecting Rod	2

	12	C3942580	Rod,Engine Connecting	1

PERFORMANCE PARTS	13	C3942580B	Rod,Engine Connecting	1

	14	C3942580A	Rod,Engine Connecting	1

	15	C3942579	Casting, Connecting Rod	1

	16	A3920075ZZ	INJECTOR	1

	17	A3909356	SEAL,RECTANGULAR RING	6

	18	A3919350	INJECTOR	6

	19	C3971964ZZ	Camshaft	1

	20	A3907431	GEAR,CAMSHAFT	1

	21	C3927155	SUPPORT,CAMSHAFT THRUST	1

	22	C3970366	CAMSHAFT	1

	23	C3970366R	CASTING，CAMSHAFT	1

	24	Q150B0820	SCREW,HEXAGON HEAD CAP	2

	25	Q5500416	KEY,PLAIN WOODRUFF	1

	1	C3977600ZZ	Head,Cylinder	1

	2	3900250	COLLET,VALVE	24

	3	3957912	SEAL,VALVE STEM	12

	4	A3900276	SPRING,VALVE	6

	5	A3901117	VALVE,INTAKE	6

	6	A3901607	VALVE,EXHAUST	6

	7	A3916691	SPRING,VALVE	6

	8	A3921394	GASKET,CYLINDER HEAD	1

	9	C3008468	PLUG, PIPE	1
HEAD,CYLINDER
	10	C3008469	PLUG, PIPE	1

	11	C3920779	Screw,Hex flange head ca	6

	12	C3920780	Screw,hex flange head ca	14

	13	C3957913	RETAINER,VALVE SPRING	12

	14	C3966452	HEAD,CYLINDER	1

	15	A3902606	PLUG,EXPANSION	5

	16	C3966451	HEAD,CYLINDER	1

	17	A3911273	CASTING,CYLINDER HEAD	1

	18	RQ61901-J8	PLUG,PIPE	1

	1	A3960404	TURBOCHARGER	1

	2	A3960442	GASKET,TURBOCHARGER	1
TURBOCHARGER
	3	C3818823	STUD	4

	4	C3818824	NUT,HEXAGON FLANGE	4

	1	C3976617	SUPPORT,REAR ENGINE	2

SUPPORT,REAR ENGINE	2	Q150B1235	SCREW,HEXAGON HEAD CAP	8

	3	Q40312	WASHER,SPRING	8

MOUNTING,STARTER MOTOR	1	A3903834	SCREW,TWELVE POINT	3

PAINT	1	C3911314	DATAPLATE	1

	1	A3902363	SEAL,RECTANGULAR RING	1

	2	A3902666	GASKET,VALVE COVER	3

	3	A3910824	SEAL,O RING	3

	4	A3960316	GASKET,COVER	1

	5	A3960317	GASKET,OIL COOLER CORE	1

	6	A3960320	WASHER,SEALING	1
KIT,MISCELLANEOUS
	7	C3903380	SEAL,BANJO CONNECTOR	3

	8	C3906694	SEAL，RECTANGLE	1

	9	C3906695	SEAL，RECTANGLE	1

	10	C3920773	WASHER,SEALING	1

	11	C3937706	Gasket,Oil drain	1

	12	Z3900518	SEAL,GROMMET	2

MOTOR,STARTING	1	3708N-010	MOTOR,STARTING	1

	1	A3901804	HOSE,PLAIN	1

	2	A3904422	HOSE,PLAIN	1

	3	A3906973	PIPE,AIR TRANSFER	1

	4	A3960315	GASKET,AIR INTAKE	1

	5	C3929881	GASKET,EXHAUST MANIFOLD	6

LOCATION,TURBOCHARGER	6	C3930249	SCREW,HEX FRANGE HEAD CA	12

	7	C3970066	MANIFOLD,EXHAUST	1

	8	C3970066R	CASTING,EXHAUST MANIFOLD	1

	9	Q1840828-J8	SCREW,HEX FRANGE HEAD CA	12

	10	Q67660B	CLAMP,SPRING HOSE	2

	11	Q67675B	CLAMP,SPRING HOSE	2

LOCATION,TURBOCHARGER	1	A3913915	COVER,INTAKE MANIFOLD	1

	1	A3903096	SCREW,HEX FRANGE HEAD CA	2

	2	A3913929	BRACKET,LIFTING	1

HOUSING,THERMOSTAT	3	A3914409	HOUSING,THERMOSTAT	1

	4	A3923331	GASKET,THM HOUSING COVER	1

	5	Q1840835-0H1	SCREW，HEX FLANGE HEAD	1

	1	A3902363	SEAL,RECTANGULAR RING	1

	2	A3902666	GASKET,VALVE COVER	6

	3	A3910824	SEAL,O RING	6

Cover,Valve	4	A3960372	COVER,VALVE	5

	5	A3960373	COVER,VALVE	1

	6	C3901895	CAP，FILLER	1

	7	C3907049	Screw,Hex flange head ca	6

	1	A3901757	SCREW,HEX FRANGE HEAD CA	3

	2	A3906697	SEAL,RECTANGULAR RING	1
Connection, Water Inlet
	3	C3008469	PLUG, PIPE	1

	4	C3973197	TUBE,WATER INLET	1

CONNECTION，WATER INLE	1	C3008468	PLUG, PIPE	2

	1	A3960342	PUMP,WATER	1
PUMP,WATER
	2	Q150B0822	SCREW,HEXAGON HEAD CAP	2

Cummins Engine model ISB5.9 G

Store / Engine Spare parts / Cummins

Gulf Vessel Machinery and Equipment

Cyber Monday

20% OFF

***All products, valid today through Sunday!***

﻿

Shop Online

Cummins Engine model ISB5.9 G

Gulf Vessel Machinery and Equipment

Gulf Vessel Machinery and Equipment

Cyber Monday

20% OFF
