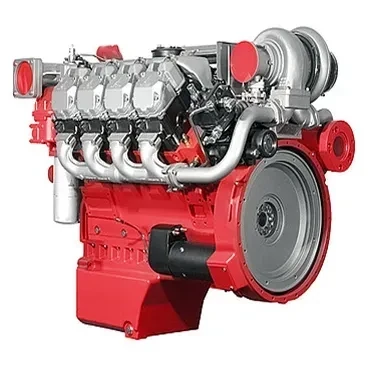

DEUTZ TCD 2015 Series Engine
Engine for agricultural machinery.
V-engine with 90° angle.
Turbocharging and charge air cooling, four-valve technology Extremely compact and powerful with high power density.
Electronic injection system controlled via solenoid valves.
Tried, tested and proven technology, equipped with acoustically optimised components.
Technical data | |
Emission norms | EU IIIA, US T3 |
Number of cylinders | 8 |
Bore | 132 mm |
Stroke | 145 mm |
Displacement | 11.9 l |
Maximum nominal speed | 2100 rpm |
Power output | 500 kW |
at speeds | 2100 rpm |
Max. torque | 2890 Nm |
at speeds | 1400 rpm |
Min. idling speed | 600 rpm |
Specific fuel consumption | 207 g/kWh |
Length | 1141 mm |
Width | 932 mm |
Height | 1172 mm |
Weight | 1245 kg |
