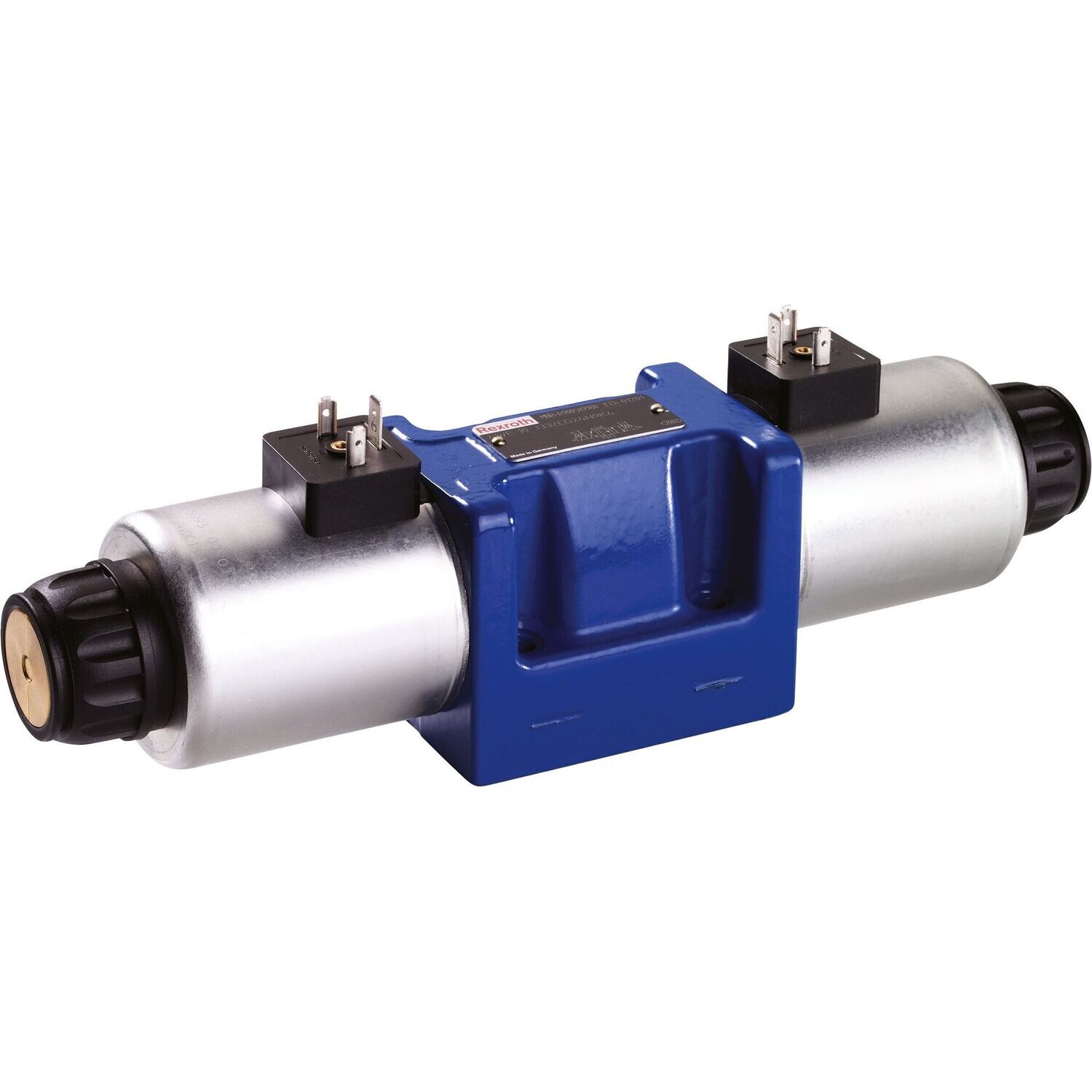

DIRECTIONAL SPOOL VALVE 4WE10J5X/EG24N9K4/M

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.

• Spool valve
• Direct actuated

• Product attributes
  Connection diagram	ISO 4401-05-04-0-05
  Max. pressure [bar]	350
  Max. flow [l/min]	150
  Spool symbol	Symbol J
  Controls	Solenoid-actuated
  Type of connection	Subplate mounting
  Size	10
  Type of actuation	Solenoid-actuated
  Number of ports	4
  Number of switching positions	3
  Supply voltage	24 V DC
  Electrical connector	Connector 3-pole (2 + PE)
  Electrical connection description	Connector 3-pole (2 + PE) according to DIN EN 175301-803
  Hydraulic fluid	HL,HLP,HLPD,HVLP,HVLPD,HFC
  Seals	NBR
  Weight [kg]	5.43
