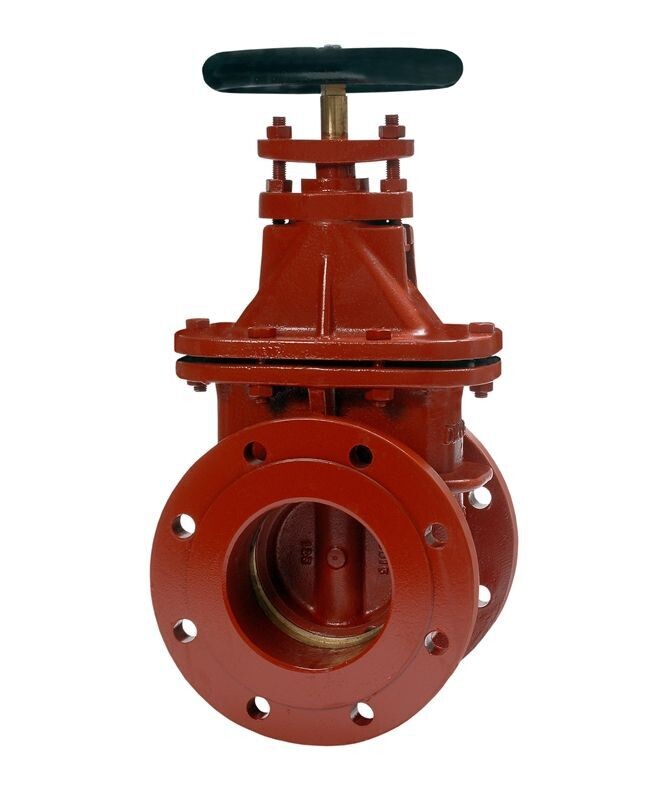

DUCTILE IRON GATE VALVE 620002 (DN40-600) Type approved valve

SPECIFICATIONS

Flange standard : EN 1092-2
Face to face standard : EN 558, series14
Bonnet : Bolted
Execution : Straight
Connection : Flanged
Operation : Handwheel
Actuation : Multiturn
Paint : Red RAL 3011

MEDIA SUITABILITY

Thermal Oil. Fuel Oil, Lubricating Oil and flammable Hydraulic Oil. Cargo Oil. Non-flammable hydraulic fluid. Boiler feedwater, condensate. Seawater and freshwater.

MAX. WORKING TEMP/PRESSURE

DN 40-150 = Max 16 Bar from -10°C to +120°C.
DN 200-300 = Max 10 Bar from -10°C to +120°C.

MATERIALS OF CONSTRUCTION

Body : Ductile Iron EN-JS1025 (GGG40.3)
Bonnet : Ductile Iron EN-JS1025 (GGG40.3)
Wedge : Ductile Iron EN-JS1025 (GGG40.3)
Seat : BronzeCC491K (RG5)
Stem : BrassCW614N (Ms58)
Gasket : NBR bonded aramid
Gland packing : PTFE
Handwheel : Cast Iron EN-JL1040 (GG25)
